Buying guide

Power Distribution Units

Our pick

Tripp Lite PDUMH15NET

For a US rack with a matching NEMA 5-15 supply, choose the Tripp Lite PDUMH15NET when you need sixteen outlets and remote power cycling in one rack unit.12

Compare the alternatives

Why this one

  • Keep the combined continuous load within 12 A. Its display reports total PDU current, which helps track the shared electrical limit.1

The alternatives

Other contenders

  • CyberPower PDU41001

    Choose the CyberPower PDU41001 when eight US outlets cover your rack and you want remote switching plus a local load display. It occupies one rack unit and has a 12 A continuous limit.4510

  • Panduit E36G18L

    Choose the Panduit E36G18L for a rack with a compatible 208 V single-phase supply and L6-30 receptacle when you need per-outlet metering and 0U mounting.6711

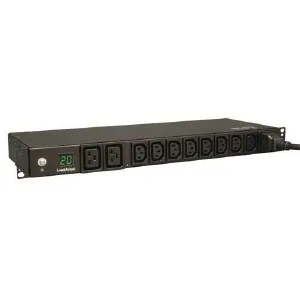

  • Tripp Lite PDUMH20HV

    A feed wired with an L6-20 receptacle turns the choice to the Tripp Lite PDUMH20HV, whose L6-20P plug fits where the Panduit's L6-30P cannot.1112

For racks with no rack units to spare

A 0U PDU leaves horizontal rack units free, while a 1U model occupies one unit.612 The Panduit E36G18L is the pick at 0U, and the 1U Tripp Lite would need a rack unit you do not have.612

For power-cycling individual devices

This is a job for per-outlet switching, which cuts and restores power to a single outlet.6 The Panduit E36G18L is the pick over the APC AP7921B, and it adds per-outlet metering to the switching they share.367

Compare the options

5 products

Compare models side by side

Models in this comparison

Every specification for these products
SpecificationTripp Lite PDUMH15NETAPC AP7921BCyberPower PDU41001Panduit E36G18LTripp Lite PDUMH20HV
Per-outlet switchingYes1Yes3Yes4Yes6No8
Input plugNEMA 5-15P1C19/ C20 connection3NEMA 5-15P4L6-30P11NEMA L6-20P; IEC-320 C2012
Outlets(16) 5-15R1eight C13 ports3NEMA 5-15R x 8418 x IEC 60320 C13/C15, 18 x IEC 60320 C13/C15/C19/C216Output Receptacles (8) C13; (2) C1912
Input current12 A116 A1312 A1030 A6Up to 16 A12
MeteringInput level1Input level3Input level5Per outlet7Input level9
Rack height1 U21 U31 U40 U61 U12
Phase———Single phase6—

Compare features

Reset requirements

5 products

How they compare

SpecificationOur pickTripp Lite PDUMH15NETAPC AP7921BCyberPower PDU41001Panduit E36G18LTripp Lite PDUMH20HV
Buy
Per-outlet switchingYes1Yes3Yes4Yes6No8
Input plugNEMA 5-15P1C19/ C20 connection3NEMA 5-15P4L6-30P11NEMA L6-20P; IEC-320 C2012
Outlets(16) 5-15R1eight C13 ports3NEMA 5-15R x 8418 x IEC 60320 C13/C15, 18 x IEC 60320 C13/C15/C19/C216Output Receptacles (8) C13; (2) C1912
Input current12 A116 A1312 A1030 A6Up to 16 A12
MeteringInput level1Input level3Input level5Per outlet7Input level9
Rack height1 U21 U31 U40 U61 U12
Phase———Single phase6—
