Buying guide

Rackmount Surge Protectors

Our pick

Furman PL-PLUS DMC

Choose the Furman PL-PLUS DMC for an ordinary grounded 15 A rack installation: its voltage and true RMS current display helps you monitor the connected load, while nine protected outlets and dimmable LED lights cover a practical stage or studio setup.12

Compare the alternatives

Why this one

  • Its current display makes total-load checks more useful than a voltage-only meter; keep the whole rack within the unit’s 15 A rating.12

The alternatives

Other contenders

  • Furman M-8DX

    Choose the M-8DX when you want rack lighting and a quick view of incoming AC voltage in one unit. It combines nine protected outlets, two dimmable incandescent lamps and a digital voltmeter. Keep the combined load within its 15 A limit.34

  • Furman M-8LX

    Choose the M-8LX for a stage rack that needs nine protected outlets and adjustable front lighting. Its two retractable incandescent lamps help you read equipment controls. The 15 A limit applies to the whole unit; choose the M-8DX if you also want an incoming-voltage display.456

  • Furman M-8S

    Choose the M-8S when you need your rack to power up in stages. Six outlets switch in three separately controlled groups, while two rear outlets and one front outlet remain unswitched. The total load must stay within 15 A on its 120 V supply.7

  • Furman PL-8C

    Choose the PL-8C for a 15 A rack that needs nine protected outlets, pull-out LED lighting and Classic-series SMP surge protection with EVS shutdown. Choose the PL-PLUS C for a voltage display, or the PL-PLUS DMC to monitor current draw too.289

  • Furman PL-PLUS C

    Choose the PL-PLUS C if you prefer a voltage bar display you can read at a glance. Its 20-segment AC voltmeter sits alongside nine protected outlets and dimmable front LED lights. Choose the PL-PLUS DMC when checking current draw matters more than the bar display; both have a 15 A combined-load limit.21011

  • Furman PL-PRO DMC

    Choose the PL-PRO DMC for a higher-load rack only when you have the required grounded 20 A supply and matching outlet. Its 20 A total rating, voltage and true RMS current meter, nine protected outlets and dimmable LED lights suit that installation. For an ordinary grounded 15 A supply, choose the PL-PLUS DMC.21213

  • Panamax MR4000

    Choose the MR4000 for a home-theater rack that needs eight protected outlets and an eight-foot power cord. Its Protect or Disconnect circuitry and automatic voltage monitoring address unsafe power conditions. Keep the combined load within its 15 A rating.1415

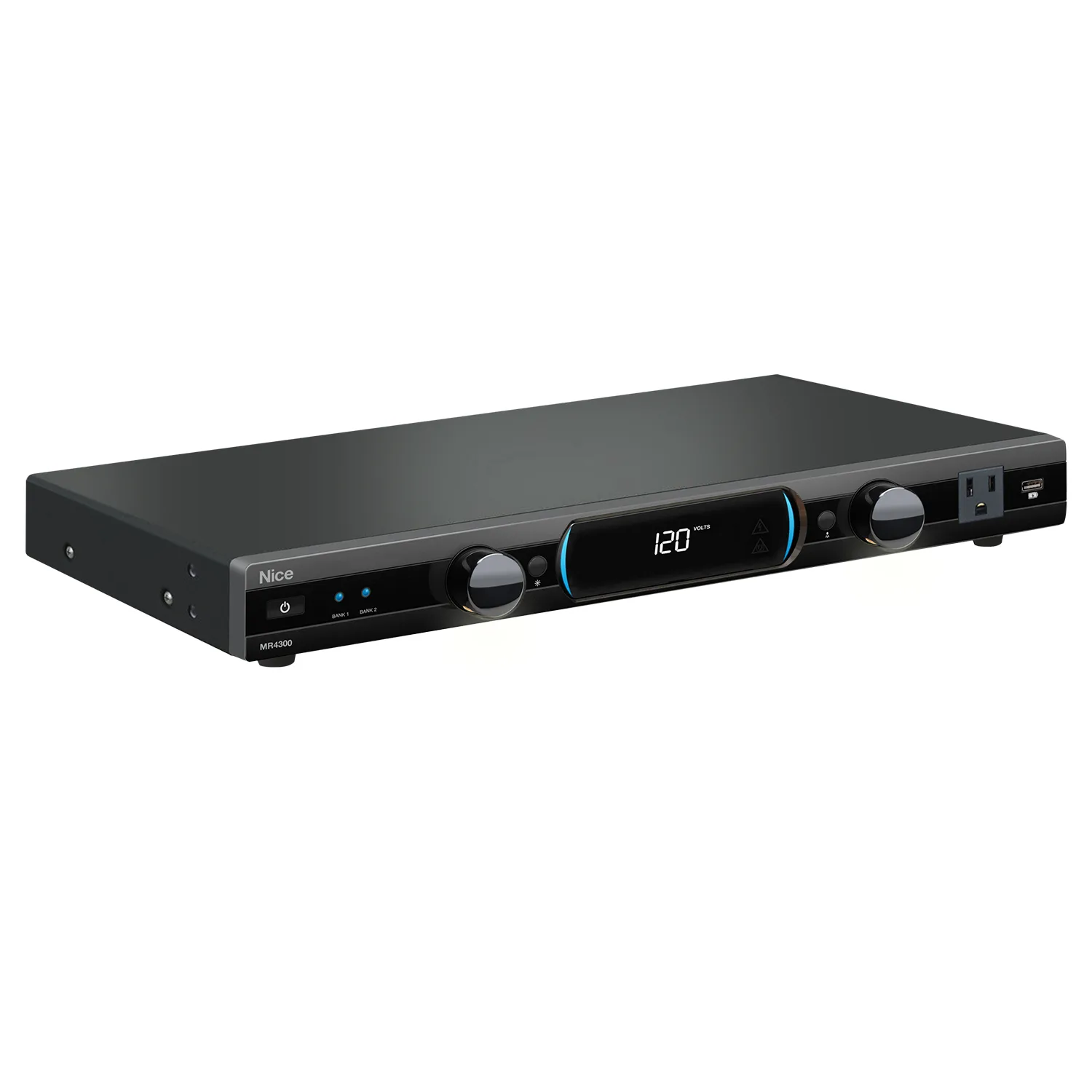

  • Panamax MR4300 Rackmount Surge Protector

    Choose the Panamax MR4300 when the rack needs an eight-foot cord; it also has nine protected outlets.16

Buying advice

  • Choose the PL-PRO DMC for a higher-load installation only with the required grounded 20 A supply and matching outlet. Choose the M-8S when sequenced startup is the feature you need.713

10 models / at a glance

Key differences

Every specification ↗

Compare the options

10 products

Narrow your options

Protected outlets
Reset requirements

3 models in this chart.

Cord length (ft); higher is preferred · 0 to 8

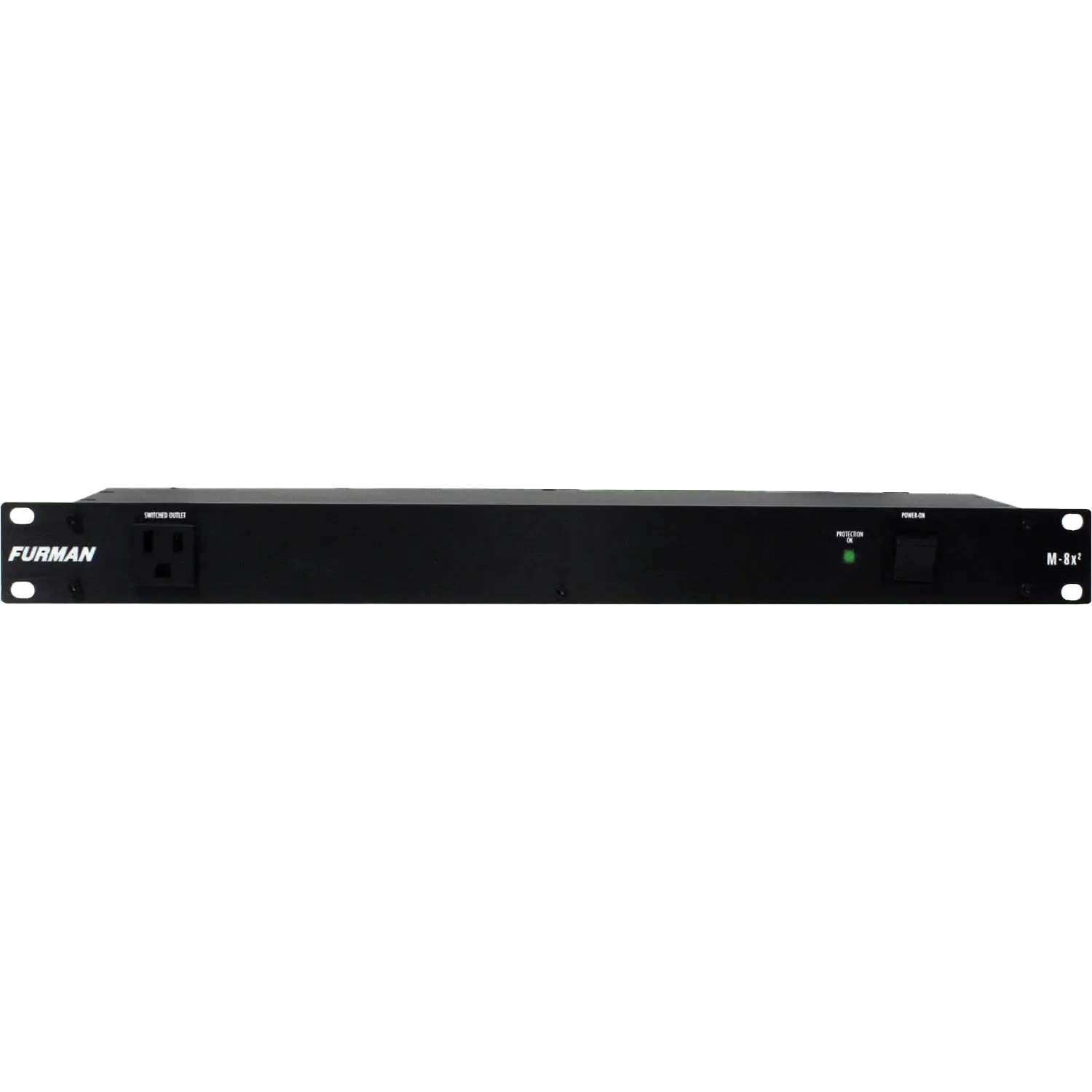

Furman M-8x2 Rackmount Surge Protector: 9, 6 ft.Panamax MR4000: 8, 8 ft.Panamax MR4300 Rackmount Surge Protector: 9, 8 ft.

Protected outlets; higher is preferred · 0 to 9

Furman PL-PLUS DMC

Buy it on Amazon

Protected outlets
9
Cord length
No exact comparable value

View product details
Compare models side by side

Models in this comparison

Every specification for these products
SpecificationFurman PL-PLUS DMCFurman M-8DXFurman M-8LXFurman M-8SFurman M-8x2 Rackmount Surge ProtectorFurman PL-8CFurman PL-PLUS CFurman PL-PRO DMCPanamax MR4000Panamax MR4300 Rackmount Surge Protector
Protected outlets9193959791798910912814916
Joule rating———225 J (Workload: Declared energy rating using the manual’s 2 × 8/20 µs condition; do not treat it as directly comparable to a different test basis.)7150 J18———1,350 J (Workload: Manufacturer-declared single-pulse energy dissipation.)151,575 J16
Clamping voltage—————————330 V (Test method: UL 1449 3rd Edition, 3,000A)16
Cord length————6 ft19———8 ft158 ft16
Protection indicator————Yes17—————
Nominal supply voltage120 V (Workload: Nominal US AC supply; use a grounded outlet.)2120 V (Workload: Nominal US AC supply; use a grounded outlet.)4120 V (Workload: Nominal US AC supply; use a grounded outlet.)6120 V (Workload: Nominal US AC supply; use a grounded outlet.)7—120 V (Workload: Nominal US AC supply; use a grounded outlet.)9120 V (Workload: Nominal US AC supply; use a grounded outlet.)11120 V (Workload: Nominal US AC supply; use a grounded outlet.)13120 V (Workload: Nominal US AC supply; use a grounded outlet.)15—
Total AC current limit15 A (Workload: Total current across the unit, not a separate allowance for each outlet.)215 A (Workload: Total current across the unit, not a separate allowance for each outlet.)415 A (Workload: Total current across the unit, not a separate allowance for each outlet.)615 A (Workload: Total current across the unit, not a separate allowance for each outlet.)7—15 A (Workload: Total current across the unit, not a separate allowance for each outlet.)915 A (Workload: Total current across the unit, not a separate allowance for each outlet.)1120 A (Workload: Total current across the unit; PL-PRO DMC requires a matching grounded 20 A supply.)13Up to 15 A (Workload: Total current across the unit, not a separate allowance for each outlet.)15—
Rack formatRack Mountable1Rack Mountable3Rack Mountable5rack mount system20—Rack Mountable8Rack Mountable10Rack Mountable12Rack Mountable14—
Meter displaytrue RMS current and laboratory precise digital voltage meter2Digital voltmeter4————20-segment LED tri-color AC voltage meter11true RMS current and laboratory precise digital voltage meter13——
Rack lightingfront panel LED lights with dimmer-power switch2incandescent light fixtures with dimmer control4incandescent light fixtures with dimmer control6——front panel LED lights with dimmer-power switch9front panel LED lights with dimmer-power switch11front panel LED lights with dimmer-power switch13——
Power sequencing———6 Sequenced NEMA 5-15R (3 duplexes, each controlled by separate relay)7——————
Protection systemSMP (Series Multi-Stage Protection) with EVS (Extreme Voltage Shutdown)2Spike & surge protection4Spike & surge protection6Merit Class (sacrificial)7—SMP (Series Multi-Stage Protection) with EVS (Extreme Voltage Shutdown)9SMP (Series Multi-Stage Protection) with EVS (Extreme Voltage Shutdown)11SMP (Series Multi-Stage Protection) with EVS (Extreme Voltage Shutdown)13Protect or Disconnect Circuitry15—

How they compare

SpecificationOur pickFurman PL-PLUS DMCFurman M-8DXFurman M-8LXFurman M-8SFurman M-8x2 Rackmount Surge ProtectorFurman PL-8CFurman PL-PLUS CFurman PL-PRO DMCPanamax MR4000Panamax MR4300 Rackmount Surge Protector
Buy
Protected outlets9193959791798910912814916
Joule rating———225 J (Workload: Declared energy rating using the manual’s 2 × 8/20 µs condition; do not treat it as directly comparable to a different test basis.)7150 J18———1,350 J (Workload: Manufacturer-declared single-pulse energy dissipation.)151,575 J16
Clamping voltage—————————330 V (Test method: UL 1449 3rd Edition, 3,000A)16
Cord length————6 ft19———8 ft158 ft16
Protection indicator————Yes17—————
Nominal supply voltage120 V (Workload: Nominal US AC supply; use a grounded outlet.)2120 V (Workload: Nominal US AC supply; use a grounded outlet.)4120 V (Workload: Nominal US AC supply; use a grounded outlet.)6120 V (Workload: Nominal US AC supply; use a grounded outlet.)7—120 V (Workload: Nominal US AC supply; use a grounded outlet.)9120 V (Workload: Nominal US AC supply; use a grounded outlet.)11120 V (Workload: Nominal US AC supply; use a grounded outlet.)13120 V (Workload: Nominal US AC supply; use a grounded outlet.)15—
Total AC current limit15 A (Workload: Total current across the unit, not a separate allowance for each outlet.)215 A (Workload: Total current across the unit, not a separate allowance for each outlet.)415 A (Workload: Total current across the unit, not a separate allowance for each outlet.)615 A (Workload: Total current across the unit, not a separate allowance for each outlet.)7—15 A (Workload: Total current across the unit, not a separate allowance for each outlet.)915 A (Workload: Total current across the unit, not a separate allowance for each outlet.)1120 A (Workload: Total current across the unit; PL-PRO DMC requires a matching grounded 20 A supply.)13Up to 15 A (Workload: Total current across the unit, not a separate allowance for each outlet.)15—
Rack formatRack Mountable1Rack Mountable3Rack Mountable5rack mount system20—Rack Mountable8Rack Mountable10Rack Mountable12Rack Mountable14—
Meter displaytrue RMS current and laboratory precise digital voltage meter2Digital voltmeter4————20-segment LED tri-color AC voltage meter11true RMS current and laboratory precise digital voltage meter13——
Rack lightingfront panel LED lights with dimmer-power switch2incandescent light fixtures with dimmer control4incandescent light fixtures with dimmer control6——front panel LED lights with dimmer-power switch9front panel LED lights with dimmer-power switch11front panel LED lights with dimmer-power switch13——
Power sequencing———6 Sequenced NEMA 5-15R (3 duplexes, each controlled by separate relay)7——————
Protection systemSMP (Series Multi-Stage Protection) with EVS (Extreme Voltage Shutdown)2Spike & surge protection4Spike & surge protection6Merit Class (sacrificial)7—SMP (Series Multi-Stage Protection) with EVS (Extreme Voltage Shutdown)9SMP (Series Multi-Stage Protection) with EVS (Extreme Voltage Shutdown)11SMP (Series Multi-Stage Protection) with EVS (Extreme Voltage Shutdown)13Protect or Disconnect Circuitry15—
